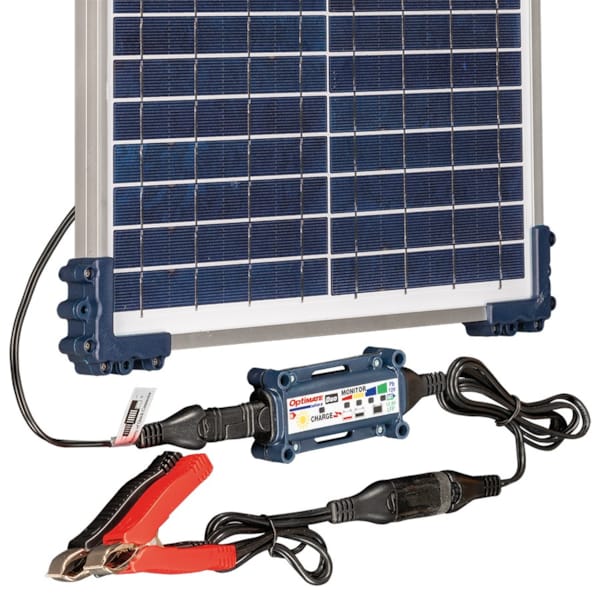

OPTIMATE Solar DUO + 20W solar panel (TM522-D2) 12V/12.8V 1.67A

191,95
  • RAD got a customer rating of 9,6/10 from 36174 reviews
  • We offer excellent advice in our stores and through our online customer service

Description

Depending on your location, the sun is rarely out of view for over 12 hours per day, so a solar panel can be used in many circumstances. We're primarily thinking of travelling situations, but when the bike is in a garage without a wall socket, you can use this charger as well.

There are many situations in which you will want to recharge your battery.

This is the world's most efficient solar pulse charging system that can save an empty battery and provide safe, long-term maintenance.

CHARGE

Revives empty batteries from as little as 4 volts, thanks to its unique pulse action. Fastest way to charge – due to 'smart charging' that chooses between pulse charging or continuous charging, depending on the strength of the available sunlight. Intelligent maintenance – continues charging the next day if the battery held its charge overnight; if not, the programme moves on to the OPTIMISING step.

MONITOR

Battery status is displayed every 3 seconds. Reports that battery is ready for STD and hi-performance AGM batteries and Lithium LFP batteries. Consumes less than 0.5 mA during monitor mode. Automatically switches to CHARGE when there is sufficient solar energy.

MOUNTING

The OptiMate charge controller is separate from the panel and can be placed close to the vehicle or battery for easy monitoring of battery charging progress and maintenance. The solar panel should be mounted towards direct sunlight. The cables allow a distance between battery and panel of 315 cm (124"). Use OptiMate extension cables O-03 or O-13 to connect the solar panel to the OptiMate charge controller over a longer distance.

ATTENTION

The actual solar panel obviously prefers sunny weather, but it can withstand anything the weather gods have in stock. This does not apply to the controller, which likes to keep things dry. So keep that part out of the rain and snow.

Outside dimensions, including corner brackets:

  • Width = 36.2 cm (14.3")
  • Height = 45.5 cm (17.9")
  • Depth = 2.6 cm (1")

Solar panel features:

  • POWER: 20 Watts (max.)
  • VOLT: 12V/12.8V
  • STYLE: Weatherproof, aluminium frame with 4 mounting brackets, 200 cm (80") output cable with SAE connector

OptiMate charging monitor features:

  • CHARGING POWER: 1.67A of 20W panel (max average current), 3-5A pulse current
  • USAGE: Lowest temperature: -20°C / -4°F
  • RECOVERY: Starts at low voltage of 4V
  • GREAT FOR: 12V STD, AGM and GEL batteries from 2-240Ah and 12.8V/13.2V Lithium LFP batteries
  • INPUT: 15-22V

Read more

Technical specifications

Features
CAN bus compatible no
Application lawnmower, car, scooter, ATV, moto
Suitable for batteries lithium (LiFePO4), lead-acid (standard, maintenance-free (VRLA), AGM, gel)
Recovery function yes
Test function battery test
Technology
Input voltage 15-22V
Output voltage 12,8V, 12V
Maximum charging current 1.67A
Maximum battery capacity (from discharged state) 2-240Ah
Maximum battery capacity trickle charge 240Ah
Charger type six-step, fully automatic charging cycle
Insulation class no
Warranty 3 years
Type of connection SAE
Accessories
Permanent battery lead (M6 eye connector) included yes
Connection cable with crocodile clips included yes
12V DIN connection cable included no
Product identifiers
EAN 5425006140836
MPN 6303131
