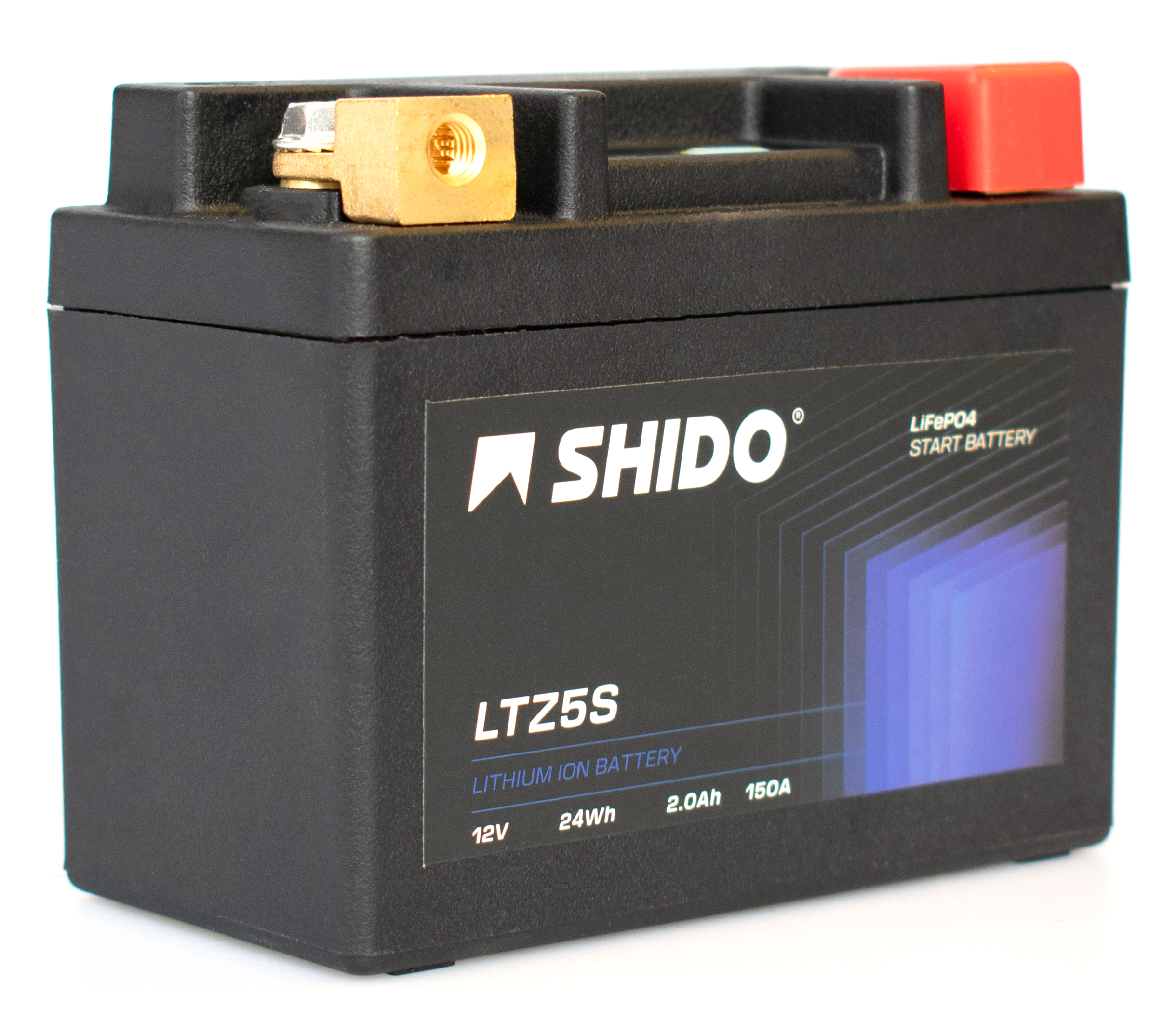

SHIDO Lithium-Ion battery LTZ5S

Maintenance promo
69,81 86,99

Check if this product is 100% sure to fit. This way we avoid unnecessary returns.

Still not the right one? Easily view and compare all 'Batteries' for your motorcycle at a glance here.

  • RAD got a customer rating of 9,6/10 from 34309 reviews
  • We offer excellent advice in our stores and through our online customer service

Description

This Shido battery is a private label, manufactured by one of the largest battery suppliers in Japan. Shido batteries are produced according to very strict quality standards. If you are looking for a problem-free battery, you have found it!

The Shido Lithium batteries may be smaller than the original one in your bike. If this is the case, the Shido comes with snap-on spacer blocks. These spacer blocks change the dimensions of your battery to make it fit your bike, despite its smaller size.

Shido Lithium batteries contain four 3.2 volt lifePO4 (Lithium Iron Phosphate) cells connected in series. Together this delivers 12.8 volts, perfect for use as a starter battery for motorcycles. The electronic battery management system (BMS) distributes the charge evenly among the four cells. Thanks to a built-in small resistor, this lithium battery can generate a very high starting power. Powerful and fast, in other words. The battery status can be checked at any time by means of a push button.

  • 3 leds = Voltage > 13,15V: battery fully charged and ready for use
  • 2 leds = Voltage > 13V: battery can start the engine but charging is advised
  • 1 led = Voltage < 12,8V: battery needs to be charged

Lithium batteries offer a superior starting capacity and are up to 30% lighter than traditional batteries. A longer life (no sulfation) and lower self-discharge are also undeniable advantages.
Attention: lithium batteries are more sensitive to freezing temperatures. In this case, it is advisable to turn on the lights for 10 to 15 seconds to warm up the battery before starting the motorcycle.

Starting batteries are not universal. This battery is only suitable for these bikes. Our product finder is nearly perfect. Before you prepare the battery for use, make sure it matches the battery you are replacing. Also make sure it will fit in the vehicle.

A lithium battery - unlike traditional batteries - can be mounted in any position. Even upside down.
Replacing a battery yourself is not difficult at all. The trick is to avoid short circuits.
When disassembling the battery, first disconnect the "-" terminal, then the "+" terminal. When assembling the battery, first connect the "+" terminal, then the "-" terminal.

Preparing the battery for use is relatively easy. Carefully follow the manual that comes with the battery. You can also find it here on this page.
Check the battery voltage by means of the button on the battery. If 3 LEDs light up, your battery is ready for use. If only 1 or 2 LEDs are illuminated, the battery must be charged using a special lithium charger!

Riding during the winter months is not everyone's cup of tea. In that case a - indeed, specific - trickle charger is essential. Recharging is very fast.

Attention!

Lithium batteries cannot withstand a charge current above 14.4V. Especially old engines sometimes deliver such voltages at high revs, with all its consequences. And no, the results won't make you happy. With older motorcycles, it is wise to test the charging current of your motorcycle with a Testmate.

Extra attention should be paid to an always-on-circuit accessory (an alarm for instance): a lithium battery quickly loses its charge when the bike is stored for a long time while devices still use the battery, even up to four times faster than you are used to with an lead-acid battery. In that case a - yes, specific - trickle charger can do an excellent job.

Read more

Technical specifications

Dimensions
Length in cm 11.3
Width in cm 7
Height in cm 8.5
Product characteristics
Technology lithium-ion
Voltage 12V
Quantity of battery acid (in litres) -
Starting current - SAE CCA (A) 120
Capacity (Ah) 2
Optimal charging current (A) 1
Maximum charging current (A) 10
Commissioning check voltage, if necessary (2 or 1 LED) charge with lithium-ion charger
Weight (kg) 0.5
Product identifiers
EAN 5414837136064
MPN LTZ5S LION -S-

This product is suitable for the following motorcycles

Select an available brand to view suitable models

Moto Comment
HONDA C 125A Super Cub 19-24 -
HONDA CRF 110F 20-24 -
HONDA CRF 125F 20-24 -
HONDA CRF 125FB 20-24 -
HONDA MSX 125 Grom 13-24 -
HONDA MSX 125A Grom 17-21 -
HONDA Z 125MA Monkey 18-24 -
Moto Comment
HUSQVARNA FE 501 19-22 -
Moto Comment
KTM EXC 525 Racing 04 -
Moto Comment
YAMAHA MT 125 22-23 -
YAMAHA MT 125A 20-21 -
YAMAHA T 135S Crypton X 06-08 -
YAMAHA T 135SE Crypton X 06-08 -
YAMAHA XSR 125 21-23 -
YAMAHA XSR 125 Legacy 22-23 -
YAMAHA YZF-R 125A 19-23 -
