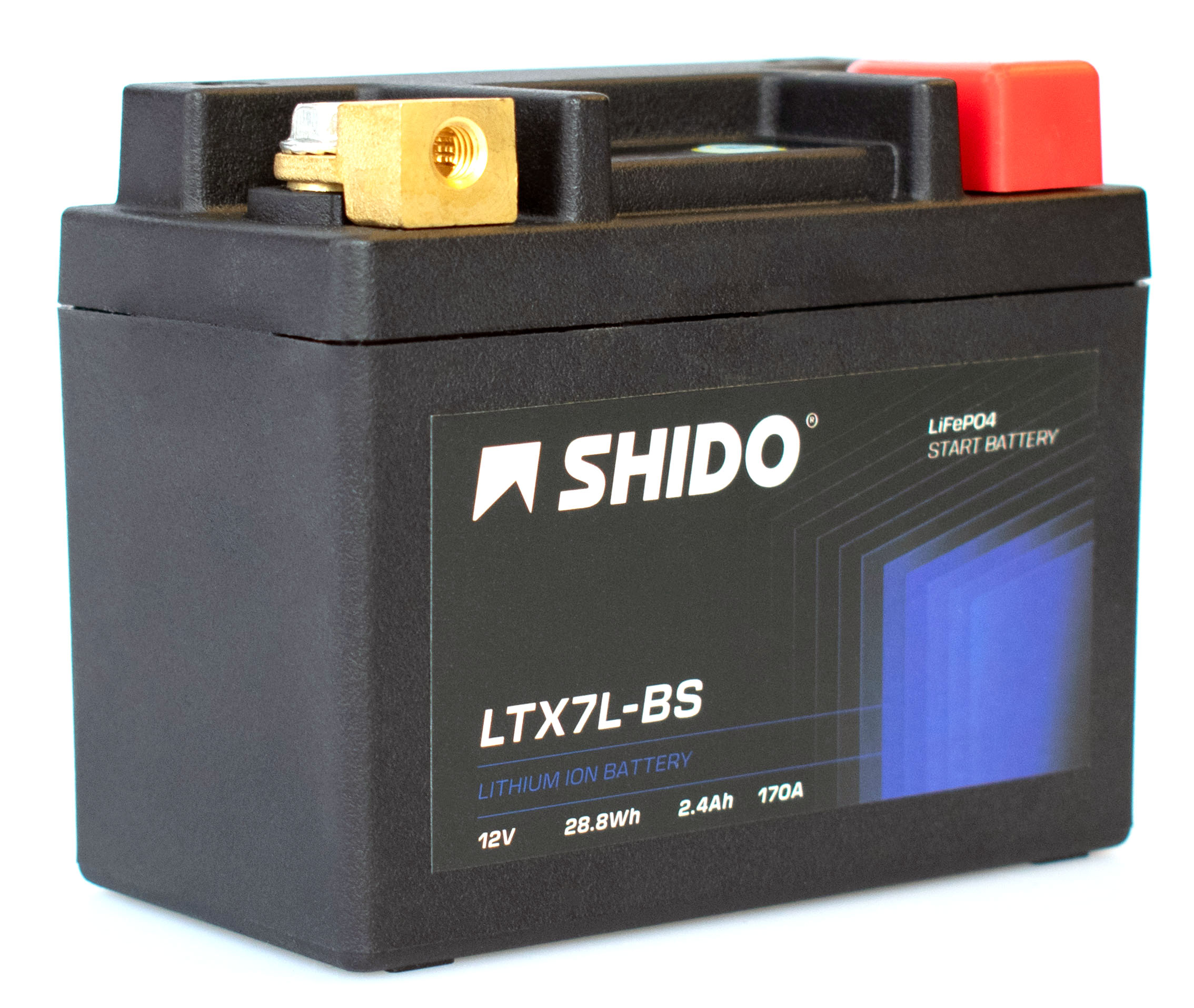

SHIDO Lithium-Ion battery LTX7L-BS

Maintenance promo
98,85 123,29

Check if this product is 100% sure to fit. This way we avoid unnecessary returns.

Still not the right one? Easily view and compare all 'Batteries' for your motorcycle at a glance here.

  • RAD got a customer rating of 9,6/10 from 34323 reviews
  • We offer excellent advice in our stores and through our online customer service

Description

This Shido battery is a private label, manufactured by one of the largest battery suppliers in Japan. Shido batteries are produced according to very strict quality standards. If you are looking for a problem-free battery, you have found it!

The Shido Lithium batteries may be smaller than the original one in your bike. If this is the case, the Shido comes with snap-on spacer blocks. These spacer blocks change the dimensions of your battery to make it fit your bike, despite its smaller size.

Shido Lithium batteries contain four 3.2 volt lifePO4 (Lithium Iron Phosphate) cells connected in series. Together this delivers 12.8 volts, perfect for use as a starter battery for motorcycles. The electronic battery management system (BMS) distributes the charge evenly among the four cells. Thanks to a built-in small resistor, this lithium battery can generate a very high starting power. Powerful and fast, in other words. The battery status can be checked at any time by means of a push button.

  • 3 leds = Voltage > 13,15V: battery fully charged and ready for use
  • 2 leds = Voltage > 13V: battery can start the engine but charging is advised
  • 1 led = Voltage < 12,8V: battery needs to be charged

Lithium batteries offer a superior starting capacity and are up to 30% lighter than traditional batteries. A longer life (no sulfation) and lower self-discharge are also undeniable advantages.
Attention: lithium batteries are more sensitive to freezing temperatures. In this case, it is advisable to turn on the lights for 10 to 15 seconds to warm up the battery before starting the motorcycle.

Starting batteries are not universal. This battery is only suitable for these bikes. Our product finder is nearly perfect. Before you prepare the battery for use, make sure it matches the battery you are replacing. Also make sure it will fit in the vehicle.

A lithium battery - unlike traditional batteries - can be mounted in any position. Even upside down.
Replacing a battery yourself is not difficult at all. The trick is to avoid short circuits.
When disassembling the battery, first disconnect the "-" terminal, then the "+" terminal. When assembling the battery, first connect the "+" terminal, then the "-" terminal.

Preparing the battery for use is relatively easy. Carefully follow the manual that comes with the battery. You can also find it here on this page.
Check the battery voltage by means of the button on the battery. If 3 LEDs light up, your battery is ready for use. If only 1 or 2 LEDs are illuminated, the battery must be charged using a special lithium charger!

Riding during the winter months is not everyone's cup of tea. In that case a - indeed, specific - trickle charger is essential. Recharging is very fast.

Attention!

Lithium batteries cannot withstand a charge current above 14.4V. Especially old engines sometimes deliver such voltages at high revs, with all its consequences. And no, the results won't make you happy. With older motorcycles, it is wise to test the charging current of your motorcycle with a Testmate.

Extra attention should be paid to an always-on-circuit accessory (an alarm for instance): a lithium battery quickly loses its charge when the bike is stored for a long time while devices still use the battery, even up to four times faster than you are used to with an lead-acid battery. In that case a - yes, specific - trickle charger can do an excellent job.

Read more

Technical specifications

Dimensions
Length in cm 11.3
Width in cm 7
Height in cm 13.1
Product characteristics
Technology lithium-ion
Voltage 12V
Quantity of battery acid (in litres) -
Starting current - SAE CCA (A) 150
Capacity (Ah) 2.4
Optimal charging current (A) 1.5
Maximum charging current (A) 12
Commissioning check voltage, if necessary (2 or 1 LED) charge with lithium-ion charger
Weight (kg) 0.6
Product identifiers
EAN 5414837136323
MPN LTX7L-BS LION -S-

This product is suitable for the following motorcycles

Select an available brand to view suitable models

Moto Comment
APRILIA 125 Mojito 03-12 -
APRILIA 125 Mojito Custom 03-12 -
APRILIA 125 Mojito E3 08 -
APRILIA 125 Tuono 17-21 -
APRILIA 150 Mojito 03-07 -
APRILIA RS 125 21-22 -
APRILIA RS4 125 11-20 -
APRILIA RS4 125 GP Replica 18-20 -
APRILIA RX 125IE 18-21 -
APRILIA SR 125 99-02 -
APRILIA SR 150 99-02 -
APRILIA SX 125 22 -
APRILIA SX 125IE 18-21 -
Moto Comment
BENELLI 125 Caffe Nero 11-16 -
BENELLI 150 Caffe Nero 11-16 -
BENELLI 251 Leoncino 18-20 -
BENELLI BN 250 14-15 -
BENELLI BN 251 16-18 -
Moto Comment
BETA ALP 125 03-07 -
BETA ALP 200 03-07 -
BETA ALP 350 05-15 -
BETA M4 350 Motard 07-15 -
BETA M4 350 Supermotard 04-06 -
Moto Comment
DERBI 125 Cross City 07-13 -
DERBI 125 Mulhacen 07-10 -
DERBI 125 Mulhacen Cafe 08-11 -
DERBI 125 Terra Adventure 07-14 -
DERBI 125 Terra Euro 07-13 -
DERBI 125R Senda 04-05 -
DERBI 125R Senda Baja 06-12 -
DERBI 125SM Senda Baja 06-12 -
DERBI DRD 125R Senda 10-13 -
DERBI DRD 125SM Senda 09-15 -
DERBI GP1 125 06-09 -
DERBI GPR 1254V 09-16 -
DERBI GPR 50 Racing 08-13 -
Moto Comment
FB MONDIAL 1948 125 PAGANI 19 -
FB MONDIAL HPS 125 HIPSTER 17-20 -
FB MONDIAL Pagani 125 1948 20 -
FB MONDIAL SMX 125 18-20 -
Moto Comment
HONDA CA 125 Rebel 95-00 -
HONDA CB 125F 15-20 -
HONDA CB 250 Nighthawk 92-00 -
HONDA CB 250 Two Fifty 92-05 -
HONDA CB 250F Hornet 96-01 -
HONDA CBF 125M 09-16 -
HONDA CBF 150 11-12 -
HONDA CBF 250 04-06 -
HONDA CBR 250R 87-13 -
HONDA CBR 250RA 11-13 -
HONDA CBR 250RR 90-94 -
HONDA CBX 250 84-98 -
HONDA CBX 250RS 84 -
HONDA CG 150ES 04-05 -
HONDA CG 150ESD 04-05 -
HONDA CMX 250 88 -
HONDA CMX 250C 96-00 -
HONDA CRF 250L 12-15 -
HONDA CRF 250M 13-16 -
HONDA FES 125 03-11 -
HONDA FES 125 S-Wing 12-13 -
HONDA FES 125A 07-11 -
HONDA FES 125A S-Wing 12-15 -
HONDA FES 150 03-09 -
HONDA FES 150 S-Wing 10-13 -
HONDA FES 150A 07-09 -
HONDA FES 150A S-Wing 10-13 -
HONDA NES 125 00-06 -
HONDA NES 150 01-06 -
HONDA NJ 50M 02 -
HONDA NJ 50MD 00-02 -
HONDA NSC 110 Lead 11-13 -
HONDA NSC 110 Vision 12-16 -
HONDA NSC 50MPD Vision 12-18 -
HONDA NSC 50R Vision 12-17 -
HONDA NSC 50WH Vision 12-16 -
HONDA NX 125 89-97 -
HONDA NX 250 87-94 -
HONDA NX 2502 90-93 -
HONDA PES 125 06-13 -
HONDA PES 125R 08-13 -
HONDA PES 150 06-10 -
HONDA PES 150R 08-11 -
HONDA SCV 110 Lead 08-13 -
HONDA SES 125 Dylan 02-07 -
HONDA SES 150 Dylan 02-06 -
HONDA SH 125 Scoopy 01-04 -
HONDA SH 125i Scoopy 04-12 -
HONDA SH 125iD Scoopy 09 -
HONDA SH 125iR Scoopy 08-13 -
HONDA SH 125iS Scoopy 07-11 -
HONDA SH 150 Scoopy 01-03 -
HONDA SH 150i Scoopy 04-12 -
HONDA SH 150iD Scoopy 09 -
HONDA SH 150iR Scoopy 08-14 -
HONDA SH 150iS Scoopy 07-11 -
HONDA TC 50 Gyro Canopy 00-02 -
HONDA VT 125C Shadow 99-08 -
HONDA VT 125C2 Shadow 00 -
HONDA VT 250C Magna 94-97 -
HONDA VT 250FL Spada 88-90 -
HONDA VTR 250 98-02 -
HONDA CB 300FA 15-19 -
HONDA CBR 300R 19 -
HONDA CBR 300RA 14-17 -
HONDA CB 600F 98-06 -
HONDA CB 600FA 00-04 -
HONDA CBF 600N 04-07 -
HONDA CBF 600NA 04-07 -
HONDA CBF 600S 04-07 -
HONDA CBF 600SA 04-07 -
Moto Comment
HUSQVARNA SM 610S 02-06 -
Moto Comment
KAWASAKI EL 250 91-99 -
KAWASAKI GPX 250R 94-95 -
KAWASAKI KL 250 Super Sherpa 00-10 -
KAWASAKI KLE 250 95-01 -
KAWASAKI KLX 125 03-16 -
KAWASAKI KLX 125 D-Tracker 10-14 -
KAWASAKI KLX 140R 17-14 23-24 -
KAWASAKI KLX 140R F 21-18 23-24 -
KAWASAKI KLX 140R L 19-16 23-24 -
KAWASAKI KLX 250 94-19 -
KAWASAKI KLX 250 D-Tracker 98-03 -
KAWASAKI KLX 250S 06-14 -
KAWASAKI ZR 250 Balius 91-02 -
KAWASAKI ZZR 250 94-03 -
KAWASAKI KFX 450R 08-14 -
Moto Comment
KEEWAY 125 Focus 06-07 -
KEEWAY 125 Logik 13-19 -
KEEWAY 125 Matrix 06-10 -
KEEWAY 150 Logik 13-15 -
KEEWAY F-Act 125 07-11 -
KEEWAY RKF 125 18-20 -
KEEWAY RKR 125i 18-20 -
KEEWAY TX 125SM 10-14 -
KEEWAY TX 200 13-14 -
Moto Comment
MALAGUTI X3M 125 Enduro 08-10 -
MALAGUTI X3M 125 Motard 08-10 -
Moto Comment
PIAGGIO 100 Free 02 -
PIAGGIO 1252V IE Liberty 11-12 -
PIAGGIO 1252V Liberty 09-13 -
PIAGGIO 1253V IE Fly 13-15 -
PIAGGIO 1253V IE Liberty 13-15 -
PIAGGIO 1253V IE Liberty i-get 15-18 -
PIAGGIO 125ie DT Fly 12-15 -
PIAGGIO 125ie Medley 16-18 -
PIAGGIO 125ie Medley S 16-18 -
PIAGGIO 150 Fly 12-13 -
PIAGGIO 1503V IE Liberty i-get 15-18 -
PIAGGIO 1503V IE Liberty LEM 13-15 -
PIAGGIO 150ie Fly 13-17 -
PIAGGIO 150ie Medley 16-20 -
PIAGGIO 150ie Medley S 16-20 -
PIAGGIO 50 Fly (2V) 12-17 -
PIAGGIO 50 Fly (4V) 11-13 -
PIAGGIO 50 Fly (Battery config 2) 12-18 -
PIAGGIO 50 Liberty 17 -
PIAGGIO 50 Liberty Single 12-14 -
PIAGGIO 50 Zip 18-20 -
PIAGGIO 503V Liberty i-get 15-18 -
Moto Comment
SUZUKI DR 125SE 94-01 -
SUZUKI DR 125SM 08-13 -
SUZUKI DR 200SE 93-13 -
SUZUKI DR 250SE 93-95 -
SUZUKI GZ 125 Marauder 98-11 -
SUZUKI GZ 250 99-01 -
SUZUKI GZ 250 Marauder 02-08 -
SUZUKI RG 125F Gamma 92-94 -
SUZUKI RG 125FU Gamma 92-95 -
SUZUKI RG 125U Wolf 92-95 -
SUZUKI RV 125 Van-Van 02-17 -
SUZUKI RV 200 02-03 -
SUZUKI RV 200 Van-Van 16-19 -
SUZUKI TU 250X Volty 09-16 -
SUZUKI UX 125 Sixteen 08-14 -
SUZUKI UX 150 SIXteen 08-14 -
SUZUKI UZ 125 V125G 05 -
SUZUKI VL 125 Intruder 99-08 -
SUZUKI VL 250 Intruder 00-07 -
SUZUKI DR 350SE 94-99 -
Moto Comment
T.M. EN 250 Enduro 10-17 -
T.M. EN 250F Enduro 09-10 -
T.M. EN 250Fi Enduro 11-16 -
T.M. EN 300 10-17 -
T.M. EN 450F 03-10 -
T.M. EN 450Fi 11-16 -
T.M. EN 530F 04-16 -
T.M. MX 530F 05-15 -
Moto Comment
VESPA 125ie Primavera 13-17 -
VESPA 125ie Sprint 14-16 -
VESPA 125ie Sprint IGET 16-18 -
VESPA 125IGET Primavera IGET 16-17 -
VESPA 150ie Primavera 13-16 -
VESPA 150ie Primavera Touring 15 -
VESPA 150ie Sprint 14-15 -
VESPA 150IGET Primavera IGET 16-17 -
VESPA 150IGET Sprint IGET 16-17 -
VESPA 150IGET Sprint Sport IGET 16-17 -
VESPA GTS 125 Super 16-21 -
VESPA GTS 125IGET IGET 18-19 -
VESPA GTS 125IGET Super IGET 18-19 -
VESPA GTS 150ie 14-18 -
VESPA GTS 150ie Super 16-17 -
VESPA LT 125ie 13-16 -
VESPA LX 150ie 14 -
VESPA LX 150ie (E3, 2V) 12-13 -
VESPA LX 150ie (Electronic Throttle Body Control, 3V) 12-13 -
VESPA LX 150ie (Standard Throttle Body Control, 3V) 12-13 -
VESPA LX 150ie Touring 13 -
VESPA S 125 IGET 17 -
VESPA S 125ie 11 -
VESPA S 125ie (E3) 12 -
Moto Comment
VOGE 125R 23 -
Moto Comment
YAMAHA XT 125R 05-11 -
YAMAHA XT 125X 05-11 -
YAMAHA XT 225 97-00 -
YAMAHA XT 225 Serow 86-93 -
YAMAHA XT 225W Serow 93-98 -
YAMAHA XT 250 Serow 05 -
YAMAHA XTZ 250 Lander 07-09 -
YAMAHA YB 125SPD 08 -
YAMAHA YBR 125 07-08 -
YAMAHA YBR 125ED 07-14 -
YAMAHA YBR 125SPD Custom 08-16 -
YAMAHA YBR 250 07-12 -
YAMAHA YS 250 Fazer 06-08 -
