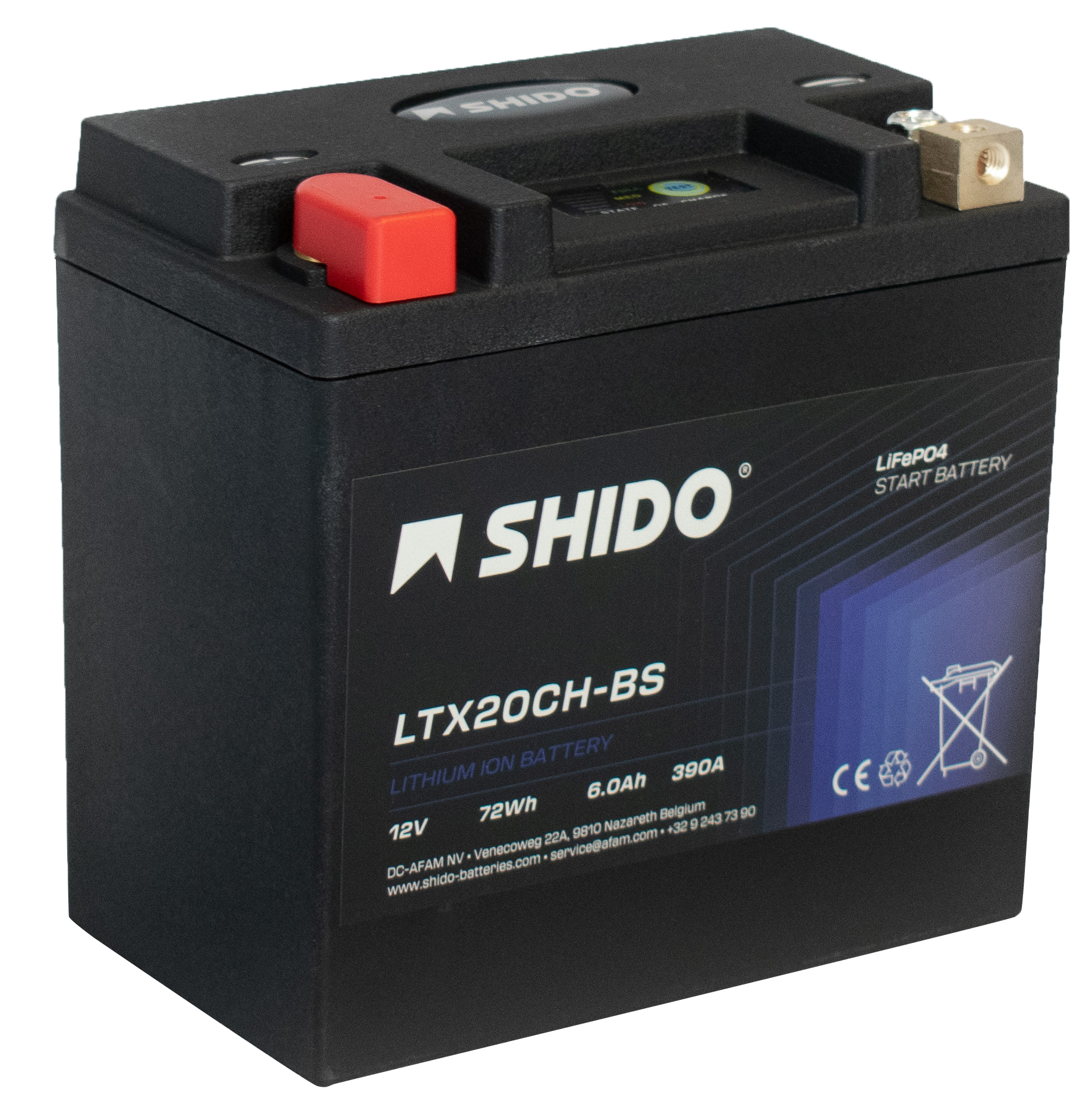

SHIDO Lithium-Ion battery LTX20CH-BS

Maintenance promo
236,30 295,11

Check if this product is 100% sure to fit. This way we avoid unnecessary returns.

Still not the right one? Easily view and compare all 'Batteries' for your motorcycle at a glance here.

  • RAD got a customer rating of 9,6/10 from 34312 reviews
  • We offer excellent advice in our stores and through our online customer service

Description

This Shido battery is a private label, manufactured by one of the largest battery suppliers in Japan. Shido batteries are produced according to very strict quality standards. If you are looking for a problem-free battery, you have found it!

The Shido Lithium batteries may be smaller than the original one in your bike. If this is the case, the Shido comes with snap-on spacer blocks. These spacer blocks change the dimensions of your battery to make it fit your bike, despite its smaller size.

Shido Lithium batteries contain four 3.2 volt lifePO4 (Lithium Iron Phosphate) cells connected in series. Together this delivers 12.8 volts, perfect for use as a starter battery for motorcycles. The electronic battery management system (BMS) distributes the charge evenly among the four cells. Thanks to a built-in small resistor, this lithium battery can generate a very high starting power. Powerful and fast, in other words. The battery status can be checked at any time by means of a push button.

  • 3 leds = Voltage > 13,15V: battery fully charged and ready for use
  • 2 leds = Voltage > 13V: battery can start the engine but charging is advised
  • 1 led = Voltage < 12,8V: battery needs to be charged

Lithium batteries offer a superior starting capacity and are up to 30% lighter than traditional batteries. A longer life (no sulfation) and lower self-discharge are also undeniable advantages.
Attention: lithium batteries are more sensitive to freezing temperatures. In this case, it is advisable to turn on the lights for 10 to 15 seconds to warm up the battery before starting the motorcycle.

Starting batteries are not universal. This battery is only suitable for these bikes. Our product finder is nearly perfect. Before you prepare the battery for use, make sure it matches the battery you are replacing. Also make sure it will fit in the vehicle.

A lithium battery - unlike traditional batteries - can be mounted in any position. Even upside down.
Replacing a battery yourself is not difficult at all. The trick is to avoid short circuits.
When disassembling the battery, first disconnect the "-" terminal, then the "+" terminal. When assembling the battery, first connect the "+" terminal, then the "-" terminal.

Preparing the battery for use is relatively easy. Carefully follow the manual that comes with the battery. You can also find it here on this page.
Check the battery voltage by means of the button on the battery. If 3 LEDs light up, your battery is ready for use. If only 1 or 2 LEDs are illuminated, the battery must be charged using a special lithium charger!

Riding during the winter months is not everyone's cup of tea. In that case a - indeed, specific - trickle charger is essential. Recharging is very fast.

Attention!

Lithium batteries cannot withstand a charge current above 14.4V. Especially old engines sometimes deliver such voltages at high revs, with all its consequences. And no, the results won't make you happy. With older motorcycles, it is wise to test the charging current of your motorcycle with a Testmate.

Extra attention should be paid to an always-on-circuit accessory (an alarm for instance): a lithium battery quickly loses its charge when the bike is stored for a long time while devices still use the battery, even up to four times faster than you are used to with an lead-acid battery. In that case a - yes, specific - trickle charger can do an excellent job.

Read more

Technical specifications

Dimensions
Length in cm 15
Width in cm 8.7
Height in cm 16.1
Product characteristics
Technology lithium-ion
Voltage 12V
Quantity of battery acid (in litres) -
Starting current - SAE CCA (A) 360
Capacity (Ah) 6
Optimal charging current (A) 3
Maximum charging current (A) 24
Commissioning check voltage, if necessary (2 or 1 LED) charge with lithium-ion charger
Weight (kg) 1.4
Product identifiers
EAN 5414837136637
MPN LTX20CH-BS LION -S-

This product is suitable for the following motorcycles

Select an available brand to view suitable models

Moto Comment
BMW K 1600GT 17-20 -
Moto Comment
HONDA XL 1000V Varadero 03-11 -
HONDA XL 1000VA Varadero 04-12 -
Moto Comment
MOTO GUZZI 1100 Breva 04-09 -
MOTO GUZZI 1100 Griso 05-08 -
MOTO GUZZI 11004V Griso 05-08 -
MOTO GUZZI 1200 Breva 07-11 -
MOTO GUZZI 1200 Norge 06-12 -
MOTO GUZZI 1200 Sport 06-07 -
MOTO GUZZI 1200 Stelvio 08-11 -
MOTO GUZZI 12004V Sport 06-13 -
MOTO GUZZI 12008V Griso 07-15 -
MOTO GUZZI 12008V Griso Special Edition 09-15 -
MOTO GUZZI 12008V Sport 08-13 -
MOTO GUZZI 12008V Stelvio 11-15 -
MOTO GUZZI 1400 Audace 15-16 -
MOTO GUZZI 1400 Audace Carbon 17 -
MOTO GUZZI 1400 California Touring 13-16 -
MOTO GUZZI 1400 California Touring SE 15-17 -
MOTO GUZZI 1400 Eldorado 15-17 -
MOTO GUZZI MGX 21 1380 Flying Fortress 16-19 -
MOTO GUZZI NTX 1200 Stelvio 09-10 -
MOTO GUZZI NTX 12008V Stelvio 11-15 -
MOTO GUZZI 850 Breva 06-07 -
MOTO GUZZI 850 Griso 06-07 -
MOTO GUZZI 850 Norge 07 -
MOTO GUZZI 940 Bellagio 07-10 -
MOTO GUZZI 940 Bellagio Apuila Nera 10-13 -
MOTO GUZZI 940 Bellagio Deluxe 09-13 -
Moto Comment
MOTO MORINI 1200 06-10 -
MOTO MORINI 1200 Corsaro 05-10 -
MOTO MORINI 1200 Corsaro Avio 08-09 -
MOTO MORINI 1200 Corsaro Veloce 07-16 -
MOTO MORINI 1200 Granpasso 08-10 -
MOTO MORINI 1200 Rebello Giubileo 12-13 -
MOTO MORINI 1200 Scrambler 08-16 -
MOTO MORINI 1200 Sport 08-10 -
MOTO MORINI MM 1187 07 -
Moto Comment
PEUGEOT 400T Metropolis 15-16 -
PEUGEOT 400T Metropolis Blue Line 15-16 -
PEUGEOT RS 400T Metropolis 15-16 -
Moto Comment
SUZUKI VL 1500 Intruder C1500T 13-17 -
SUZUKI VLR 1800 Intruder C1800RT 08-11 -
SUZUKI VLR 1800RT Intruder C1800RT 08-09 -
SUZUKI VZ 1600 Marauder M1600 04-05 -
SUZUKI VZR 1800BZ Intruder M1800RB 14-17 -
SUZUKI VZR 1800R Intruder M1800R 06-17 -
SUZUKI VZR 1800R2N Intruder M1800R2 08-09 -
SUZUKI VZR 1800RZ Intruder M1800RZ 07-13 -
SUZUKI LT-A 500F 04-07 -
SUZUKI LT-A 500XP 10-20 -
SUZUKI LT-F 500F Vinson Quadrunner 04-07 -
SUZUKI LT-A 700X King Quad 05-07 -
SUZUKI LT-A 750X King Quad 08-13 -
SUZUKI LT-A 750XP 09-19 -
Moto Comment
TRIUMPH Rocket III GT 2500 22-23 -
TRIUMPH Rocket III GT 2500 20-21 -
TRIUMPH Rocket III GT 2500 21 -
TRIUMPH Rocket III R 2500 22-23 -
TRIUMPH Rocket III R 2500 20-21 -
TRIUMPH Rocket III R 2500 21 -
